Screw Air Compressor Supplier/Air Compressor Factory

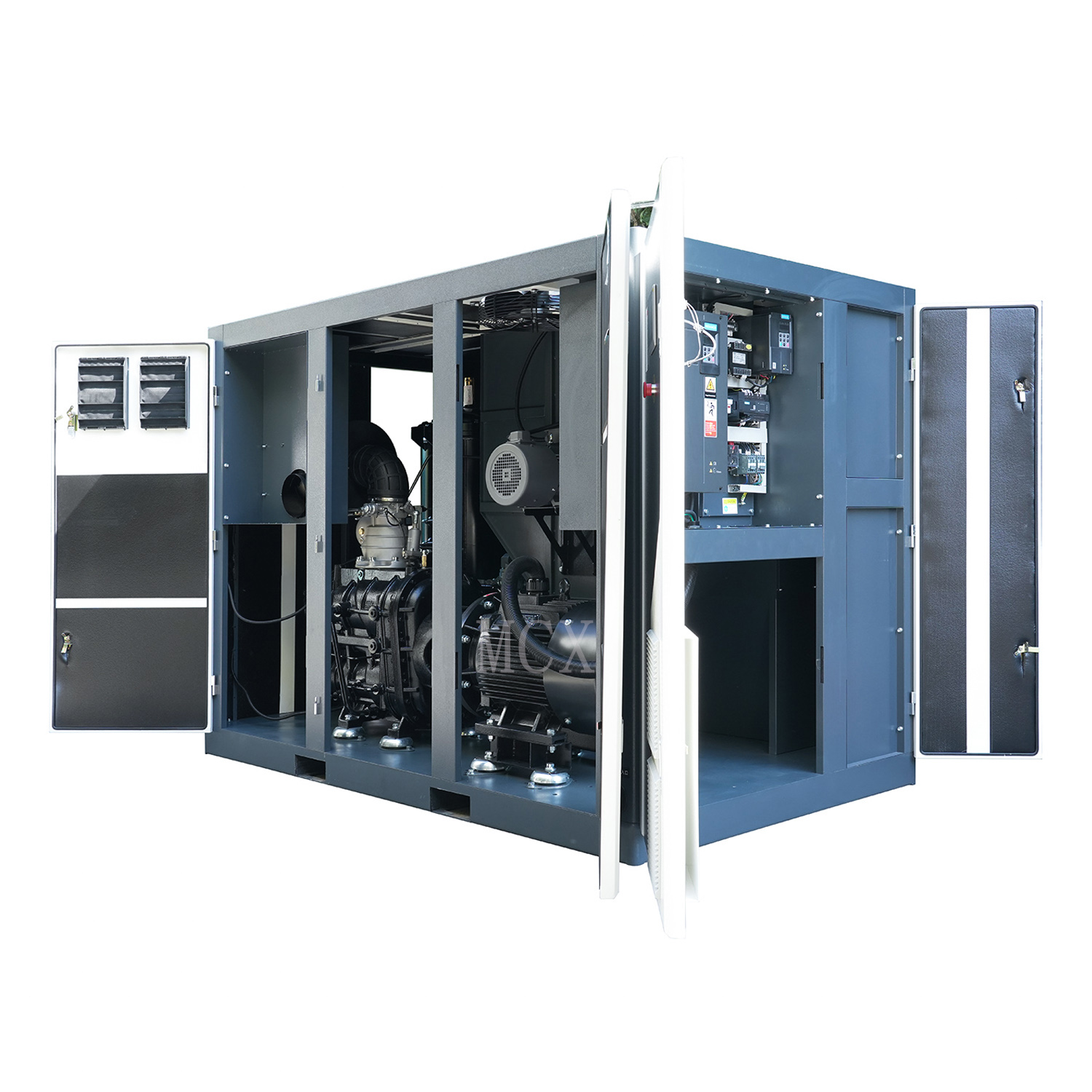

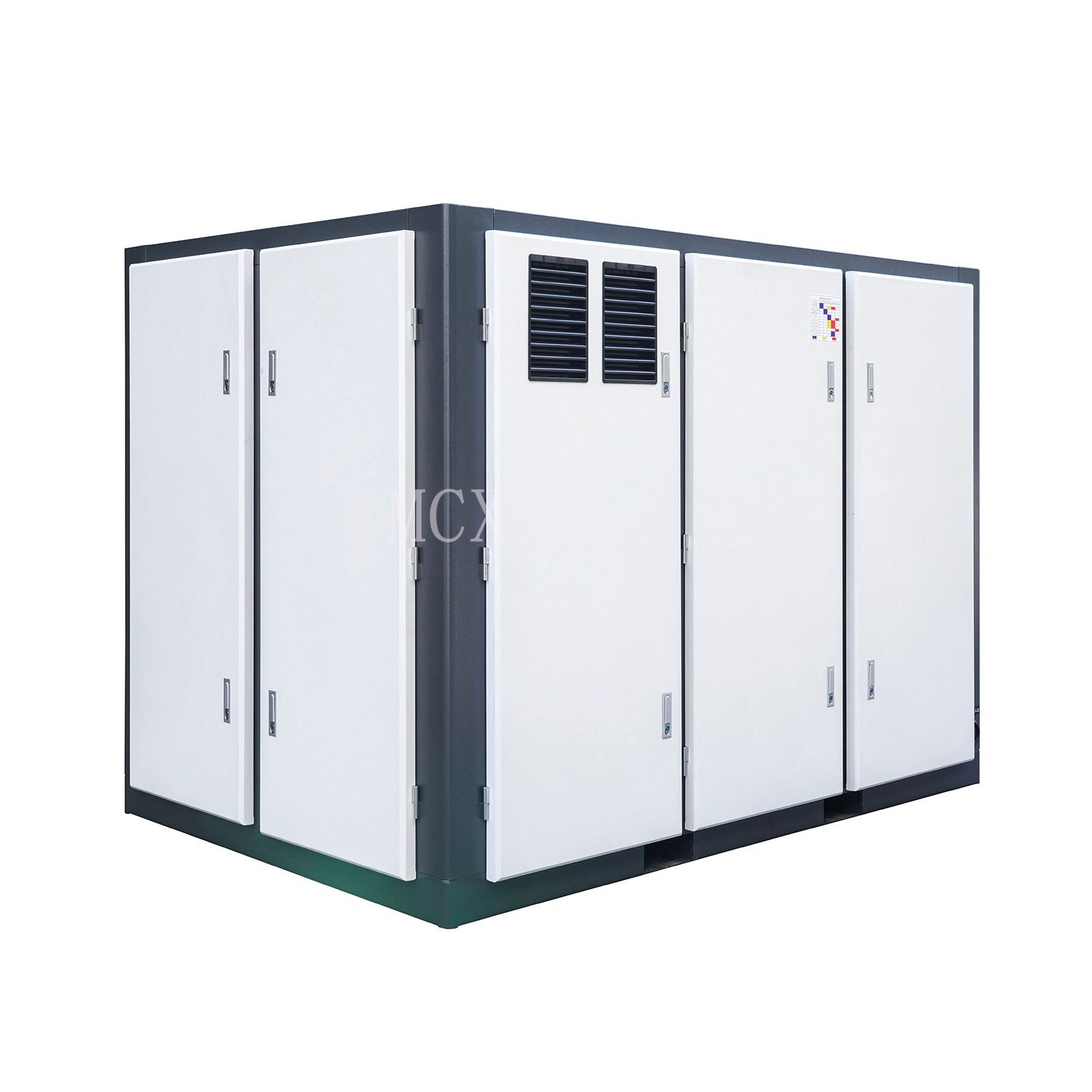

WZS-10HP -22KW 3 Phase Permanent Magnet VSD Screw Air Compressor china
Power: WZS-22KW
Flow rate:3.8m3/min Working
pressure: 10 bar
Control: PLC
Driven:Electric
Cooling: by air Electric
motor: 380V/50HZ/3PH

Availability:

Quantity:



Inquire Add to Basket

Model:
RS-7.5KW/11KW/15KW/22KW/30KW/37KW/45KW/55KW/75KW
Brand:
WZS
Code:
002

Product Description

微信图片_20230921104610

微信图片_20230922140728

微信图片_20230926133125

五年使用成本对比

微信图片_20230925132223

微信图片_20230925132303

微信图片_20230925133322

^Model	^{KW Power}	^{Mpa Pressure}	^{Air ﬂow}	^Noise	^Stage	_{Exit pipe diameter}	_{Boundary dimension (MM)}			_（kg） _{Total quantity}
							_{Length Width Height}
WZS-10AVF/EVA/APM	7.5	8	1.0	60±2	Single stage	3/4	800	750	1000	200
		10	0.8
WZS-15AVF/EVAAPM	11	8	1.8	62±2	Single stage	1	1200	850	1300	260
		10	1.6
WZS-20AVF/EVA/APM	15	8	2.2	63±2	Single stage	1	1200	850	1300	380
		10	1.8
WZS-30AVF/APM	22	8	3.8	66±2	Single stage	1 1/4	1200	800	1300	420
WZS-30EVA		10	3.0				1380	850	1150	460
WZS-40AVF/EVA/APM	30	8	5.0	68±2	Single stage	1 3/4	1380	850	1150	600
		10	4.4
WZS-50AVF/APM	37	8	6.2	68±2	Single stage	1 1/2	1300	1000	1450	700
WZS-50EVA		10	5.4				1600	1000	1550	750
WZS-60AVF/EVA/APM	45	8	8.0	68±2	Single stage	1 1/2	1600	1000	1370	780
		10	6.8
WZS-75AVF/EVA/APM	55	8	10.5	69±2	Single stage	2 1/2	1800	1270	1500	1350
		10	8.5
WZS-100AVF/EVA	75	8	13.2	70±2	Single stage	2 1/2	2050	1270	1550	1470
		10	11.6
WZS-125EVA	90	8	16.0	70±2	Single stage	2 1/2	2150	1100	1500	1750
		10	14.0
WZS-150EVA	110	8	20.5	71±2	Single stage	DN65	2750	1750	1900	2600
		10	17.3
WZS-180EVA	132	8	22	72±2	Single stage	DN80	2750	1750	1900	2880
		10	20.1
WZS-220EVA	160	8	27.0	75±2	Single stage	DN100	2950	1800	1850	3200
		10	24.5
WZS-250EVA	185	8	30.4	85±2	Single stage	DN100	3000	2000	2100	3500
		10	28.6
WZS-270EVA	200	8	33.5	85±2	Single stage	DN100	3000	2000	2100	3650
		10	31
WZS-300EVA	220	8	40	85±2	Single stage	DN125	3200	2100	2450	3800
		10	36.5
WZS-340EVA	250	8	43.5	85±2	Single stage	DN125	3200	2100	2450	4200
		10	39.5
